MTR / BYOM - Sample solution for medium rooms

Nick Palmer (@nick)

February 9, 2026 • 112 views

Solution Overview MTR / BYOM via USB-C

Perfect for small and medium sized meeting rooms, this solution provides a high quality system for Microsoft Teams meetings.  A Huddly C1 all-in-one camera and audio system gives crisp images with multiple options for automatic framing as well as rich audio.

The ReThink switch extends the flexibility of the space by allowing users to attach their own computer for local screen share and access the Huddly C1 for Bring Your Own Meeting functionality.

All this functionality comes at less than £4,500 RRP.

Key Benefits

- One-touch join of Microsoft Teams meetings

- Exceptional video quality with AI framing & tracking

- Outstanding microphone pickup and professional speaker output

- Bring Your Own Meeting support connects screen and peripherals.  Host the meeting on your computer.

- Auto switching to your computer as soon as you plug in

- Single USB-C connects your computer for video, audio, data and network*.  Plus, it charges your battery!

Core Components

-  MAXHUB XCore MTR

-  MAXHUB ND65CMA 65" display

-  Huddly C1 all in one camera/audio bar

-  ReThink RAV-SW-SW-C2x1HU switch

-  ReThink active USB-C cable

Optional Components for wireless sharing

-  Mersive POD v4

-  AirServer Connect 3

-  MAXHUB WB05 + WT13

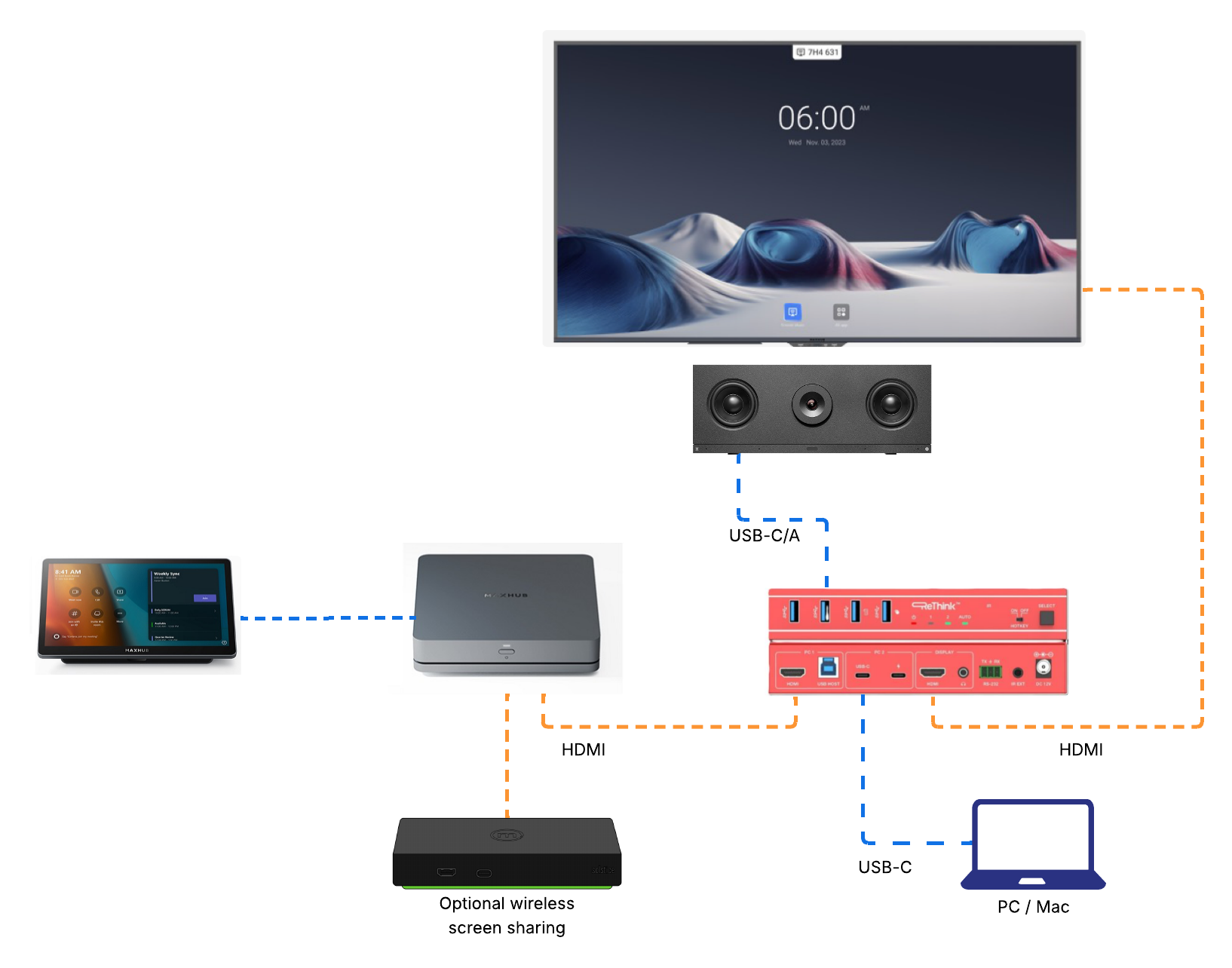

Connection Diagram


Ascentae Support

From pre or post deployment, we can help you every step of the way. We'll assign you a designated Account Manager and a Project Manager for a smooth process from start to finish.


Support Packages

We can provide Silver or Gold Warranty packages depending on your requirements. These can include advanced replacement hardware, out of hours support and remote management of your portal.

Please contact us to discuss.
